| Merk – Marque: | Nobile |
| Materiaal – Materiaux: | Die-cast Aluminium |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 150x110x30mm |
| Kleur – Couleur: | White / Anthracite / Grey / Dark brown |
| Bundel – Faisceau: | 110° |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 14W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 1610 lm (3000°K) / 1714 lm (4000°K) |
| RA – CRI: | >90 |
| Diffuser: | Black tempered glass
Printed aluminium reflector |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP67 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off
Fixing head for pole / Base for pole Base for surface-mounting / Ground spike |
Ray Pro14
Technische Fiche

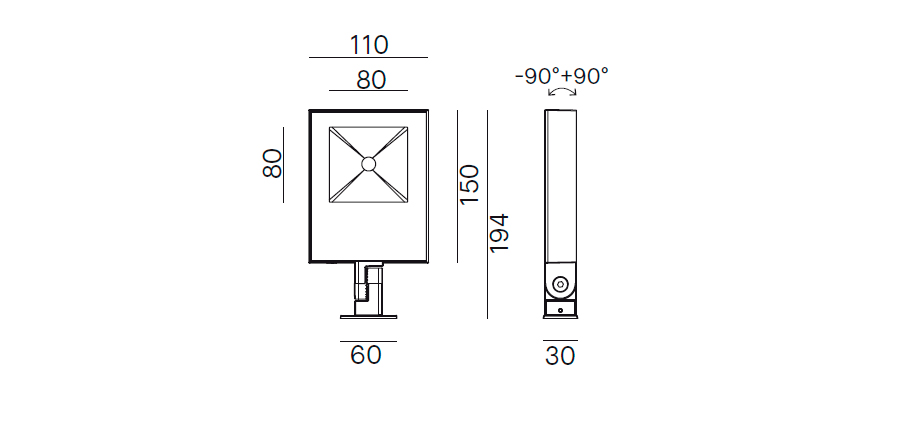

Technische tekening
