| Merk – Marque: | Molto Luce |
| Type: |
Opbouw / Apparent |

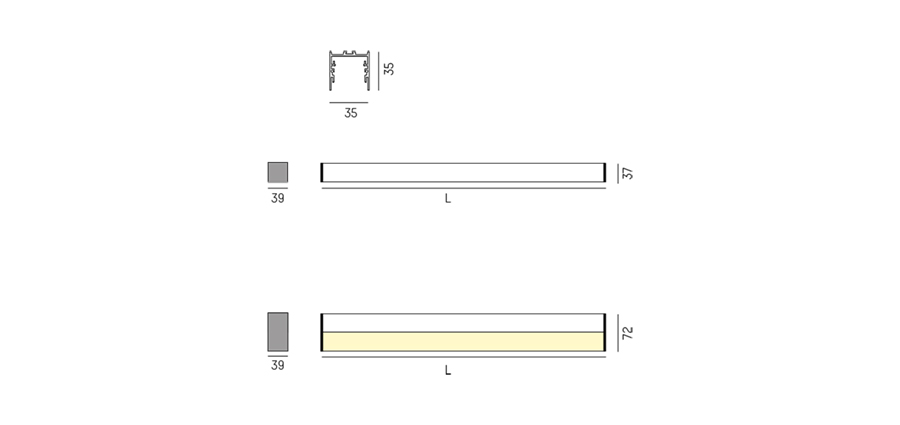

| Afmetingen armatuur – Dimensions armature: |
37x39xLmm / 72x39xLmm L: 578mm, 858mm, 1138mm, 1418mm, 2818mm, 4218mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Aluminium Anodized |
| Diffuser – Diffuseur | Cubic PMMA Opaal / Flat PMMA Opaal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 10W / 15W / 19W / 24W / 48W / 71W |
| Kelvin graden – Degré Kelvin: | 2700 °K / 3000°K / 4000°K |
| Lumen: |
10W: – Flat PMMA Opaal: 820 lm(2700°K) / 890 lm(3000°K) / 930 lm(4000°K) – Cubic PMMA Opaal: 920 lm(2700°K) / 1010 lm(3000°K) / 1050 lm(4000°K) 15W: – Flat PMMA Opaal: 1230 lm(2700°K) / 1340 lm(3000°K) / 1400 lm(4000°K) – Cubic PMMA Opaal: 1390 lm(2700°K) / 1510 lm(3000°K) / 1570 lm(4000°K) 19W: – Flat PMMA Opaal: 1650 lm(2700°K) / 1790 lm(3000°K) / 1860 lm(4000°K) – Cubic PMMA Opaal: 1850 lm(2700°K) / 2020 lm(3000°K) / 2100 lm(4000°K) 24W: – Flat PMMA Opaal: 2060 lm(2700°K) / 2240 lm(3000°K) / 2330 lm(4000°K) – Cubic PMMA Opaal: 2320 lm(2700°K) / 2520 lm(3000°K) / 2620 lm(4000°K) 48W: – Flat PMMA Opaal: 4130 lm(2700°K) / 4490 lm(3000°K) / 4670 lm(4000°K) – Cubic PMMA Opaal: 4640 lm(2700°K) / 5050 lm(3000°K) / 5250 lm(4000°K) 71W: – Flat PMMA Opaal: 6190 lm(2700°K) / 6730 lm(3000°K) / 7000 lm(4000°K) – Cubic PMMA Opaal: 6970 lm(2700°K) / 7570 lm(3000°K) / 7870 lm(4000°K) |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (Inclu.) |
| Voeding – Alimentation: | 220-240V / 50-60Hz |
| Bescherming – Protection: | IP54 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
DALI (10W Version not Dimmable) / Push |
