| Merk – Marque: | Climar |
| Materiaal – Materiaux: | UV resistant polyestar powder coated aluminium body with anti-corrosion surface treatment
Plastic recessed housing
Cover rim made of AISI 316 stailess steel, silicone gasket and tempered safety glass |
| Type: | Inbouw / Encastré |
| Kleur – Couleur: | Fine brushed stainless steel |
| Diffuser – Diffuseur: | Clear Tempered Glass
PMMA Lens |
| Bundel – Faisceau: | 12º / 35º / 48º |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 4W / 8W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 4W:
12º: 3000°K: 344 lm / 4000°K: 431 lm 35º: 3000°K: 342 lm / 4000°K: 428 lm 48º: 3000°K: 322 lm / 4000°K: 403 lm
8W: 12º: 3000°K: 610 lm / 4000°K: 762 lm 35º: 3000°K: 602 lm / 4000°K: 748 lm 48º: 3000°K: 567 lm / 4000°K: 709 lm |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230/50Hz 24 VDC |
| Bescherming – Protection: | IK10 / IP67 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off
Honeycomb Louvre – Glare control filter
2700ºK / 5000ºK / 6500ºK / RGB / RGBW |
Lanin 135
Technische Fiche

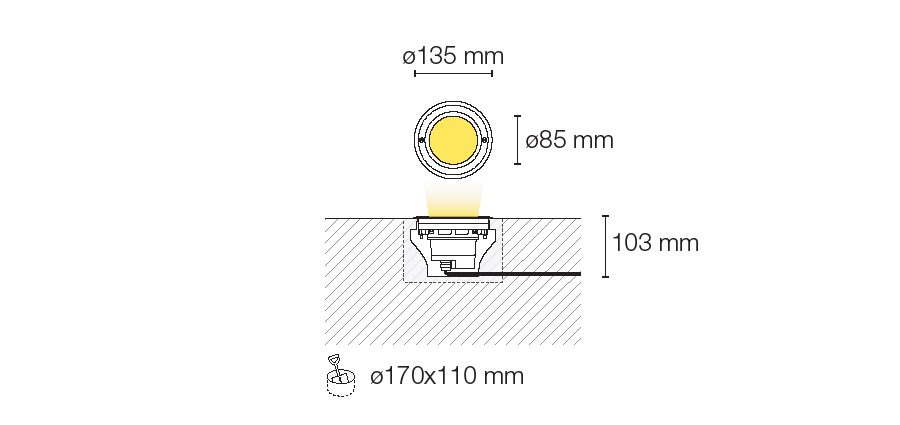

Technische tekening
