| Merk – Marque: | Castaldi Lighting |
| Materiaal – Materiaux: | Polycarbonate housing- Snap-in latches built into the structure |
| Type: |
Inbouw / Encastré |
|
Afmetingen armatuur – Dimensions armature: |
340x274x60 mm |
| Kleur – Couleur: | Embossed White / Graphite Satin |
|
Diffuser – Diffuseur |
Asymmetric |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 9W |
| Kelvin graden – Degré Kelvin: |
3000°K / 4000°K |
| RA – CRI: | >80 / >90 |
| Lumen: |
Dark: CRI >80 3000°K: 708 lm / 4000°K: 758 lm CRI >90 3000°K: 410 lm / 4000°K: 458 lm
Oval Side 1/3 CRI >80 3000°K: 621 lm / 4000°K: 664 lm CRI >90 3000°K: 359 lm / 4000°K: 402 lm
Wall Washer CRI >80 3000°K: 589 lm / 4000°K: 631 lm CRI >90 3000°K: 342 lm / 4000°K: 381 lm
Full Effect CRI >80 3000°K: 353 lm / 4000°K: 377 lm CRI >90 3000°K: 204 lm / 4000°K: 228 lm |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI |
Usepartout Superflat
Technische Fiche

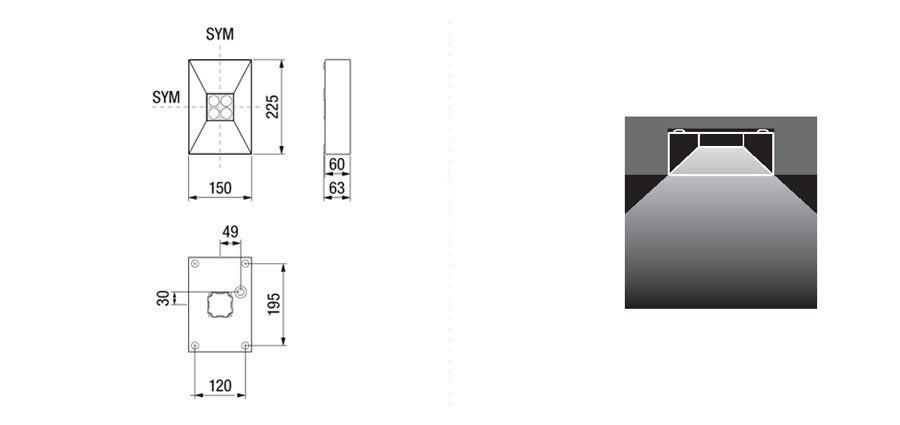

Technische tekening
