| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Die Cast Aluminium |
| Type: |
Opbouw / Apparent Richtbaar-Orientable: 360° Horizontal-Horizontaal / +/-180° Vertical-Verticaal |
| Afmetingen armatuur – Dimensions armature: | Ø128x147mm |
| Kleur – Couleur: |
Matt White / Matt Black / Concrete Grey |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 26W / 40W / 53W / 66W / 80W |
| Bundel – Faisceau: |
26W 13º / 22º / 46º
40W & 53W & 66W & 80W 17º / 24º / 48º |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| CRI: |
>85 / >95 |
| Lumen: |
26W CRI > 85 & 3000ºK – Nominal = 3804 lm Deliv. Output: 2815 lm (13º) / 2853 lm (22º) / 2853 lm (46º) CRI > 95 & 2700ºK – Nominal = 3157 lm Deliv. Output: 2336 lm (13º) / 2368 lm (22º) / 2368 lm (46º) CRI > 95 & 3000ºK – Nominal = 3281 lm Deliv. Output: 2428 lm (13º) / 2461 lm (22º) / 246 lm (46º) CRI > 95 & 4000ºK – Nominal = 3333 lm Deliv. Output: 2466 lm (13º) / 2500 lm (22º) / 2500 lm (46º)
40W CRI > 85 & 3000ºK – Nominal = 5822 lm Deliv. Output: 4308 lm (17º) / 4366 lm (24º) / 4366 lm (48º) CRI > 95 & 2700ºK – Nominal = 4797 lm Deliv. Output: 3550 lm (17º) / 3598 lm (24º) / 3598 lm (48º) CRI > 95 & 3000ºK – Nominal = 4989 lm Deliv. Output: 3692 lm (17º) / 3742 lm (24º) / 3742 lm (48º) CRI > 95 & 4000ºK – Nominal = 5066 lm Deliv. Output: 3749 lm (17º) / 3800 lm (24º) / 3800 lm (48º)
53W CRI > 85 & 3000ºK – Nominal = 7438 lm Deliv. Output: 5504 lm (17º) / 5578 lm (24º) / 5578 lm (48º) CRI > 95 & 2700ºK – Nominal = 6126 lm Deliv. Output: 4533 lm (17º) / 4595 lm (24º) / 4595 lm (48º) CRI > 95 & 3000ºK – Nominal = 6371 lm Deliv. Output: 4715 lm (17º) / 4779 lm (24º) / 4779 lm (48º) CRI > 95 & 4000ºK – Nominal = 6469 lm Deliv. Output: 4787 lm (17º) / 4852 lm (24º) / 4852 lm (48º)
66W CRI > 85 & 3000ºK – Nominal = 9155 lm Deliv. Output: 6774 lm (17º) / 6866 lm (24º) / 6866 lm (48) CRI > 95 & 2700ºK – Nominal = 7538 lm Deliv. Output: 5578 lm (17º) / 5653 lm (24º) / 5653 lm (48) CRI > 95 & 3000ºK – Nominal = 7843 lm Deliv. Output: 5804 lm (17º) / 5882 lm (24º) / 5882 lm (48) CRI > 95 & 4000ºK – Nominal = 7962 lm Deliv. Output: 5892 lm (17º) / 5972 lm (24º) / 5972 lm (48)
80W CRI > 85 & 3000ºK – Nominal = 10515 lm Deliv. Output: 7781 lm (17º) / 7886 lm (24º) / 7886 lm (48) CRI > 95 & 2700ºK – Nominal = 8658 lm Deliv. Output: 6407 lm (17º) / 6493 lm (24º) / 6493 lm (48) CRI > 95 & 3000ºK – Nominal = 9008 lm Deliv. Output: 6666 lm (17º) / 6765 lm (24º) / 6756 lm (48) CRI > 95 & 4000ºK – Nominal = 9145 lm Deliv. Output: 6767 lm (17º) / 6859 lm (24º) / 6859 lm (48) |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
On-Off / DALI / 1-10V 80W only in On-Off version |
Museo
Technische Fiche

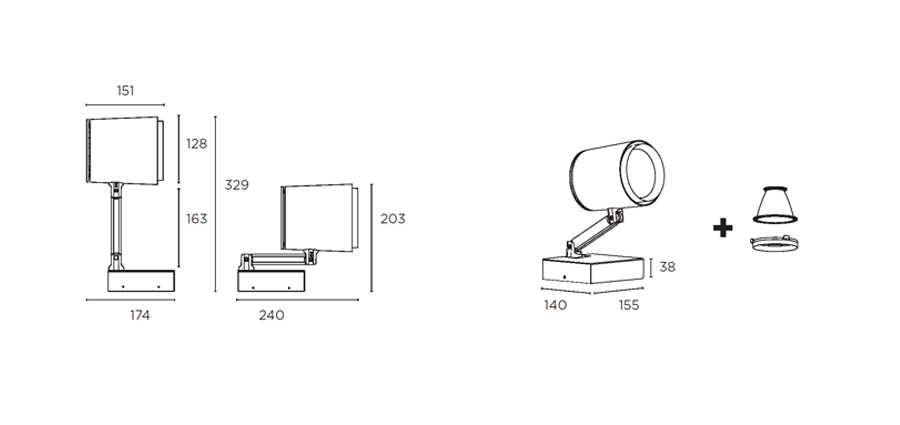

Technische tekening
