| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Die Cast Aluminium |
| Type: |
Opbouw / Apparent Richtbaar-Orientable: 360° Horizontal-Horizontaal / +/-180° Vertical-Verticaal |
| Afmetingen armatuur – Dimensions armature: | Ø128x147mm |
| Kleur – Couleur: |
Wit-Blanc / Zwart-Noir / Concrete Grey |
|
Bundel – Faisceau: |
26W: 13° / 26° / 43° 40 / 53 / 80W: 15° / 26° / 52° |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 26W /53W / 80W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen |
CRI 85 & 3000°K: 3300 lm (26W) / 5200 lm (40W) / 6700 lm (53W) / 9800 lm (80W) CRI 95 & 2700°K: 2650 lm (26W) / 4200 lm (40W) / 5400 lm (53W) / 7900 lm (80W) CRI 95 & 3000°K: 2800 lm (26W) / 4450 lm (40W) / 5700 lm (53W) / 8300 lm (80W) CRI 95 & 4000°K: 2900 lm (26W) / 4600 lm (40W) / 5900 lm (53W) / 8600 lm (80W) |
| CRI |
>85 / >95 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (optie / option) |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI (Version 80W) / DIM PUSH (Version 80W) / DIM 1 – 10 V (Version 26 W & 40W & 53W) |
Museo
Technische Fiche

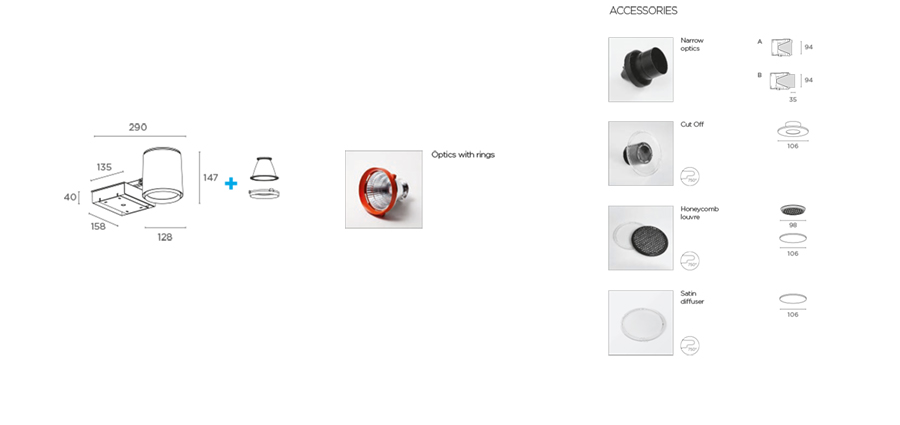

Technische tekening
