| Merk – Marque: | Climar |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: | Ø70xCmm
C = 900mm / C = 1181mm C = 1462mm / C = 1743mm C = 2024mm / C = 2305mm C = 2586mm / C = 2867mm |
| Diffuser – Diffuseur: | Opal PMMA |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | C = 900mm – 13W / 20W / 38W
C = 1181mm – 18W / 27W / 51W C = 1462mm – 22W / 34W / 63W C = 1743mm – 29W / 44W / 76W C = 2024mm – 34W / 51W / 88W C = 2305mm – 35W / 54W / 101W C = 2586mm – 43W / 66W / 114W C = 2867mm – 44W / 68W / 127W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: |
13W 1880lm (3000 °K ) / 1967lm (4000°K) 20W 2705lm (3000 °K ) / 2831lm (4000°K) 38W 4440lm (3000 °K ) / 4652lm (4000°K)
18W 2506lm (3000 °K ) / 2623lm (4000°K) 27W 3607lm (3000 °K ) / 3734lm (4000°K) 51W 5993lm (3000 °K ) / 6203lm (4000°K)
22W 3133lm (3000 °K ) / 3278lm (4000°K) 34W 4509lm (3000 °K ) / 4717lm (4000°K) 63W 7399lm (3000 °K ) / 7753lm (4000°K)
29W 3925lm (3000 °K ) / 4125lm (4000°K) 44W 5646lm (3000 °K ) / 5937lm (4000°K) 76W 9103lm (3000 °K ) / 9573lm (4000°K)
34W 4579lm (3000 °K ) / 4813lm (4000°K) 51W 6587lm (3000 °K ) / 6926lm (4000°K) 88W 10621lm (3000 °K ) / 11169lm (4000°K)
35W 5013lm (3000 °K ) / 5246lm (4000°K) 54W 7213lm (3000 °K ) / 7547lm (4000°K) 101W 14798lm (3000 °K ) / 12406lm (4000°K)
43W 6189lm (3000 °K ) / 5887lm (4000°K) 66W 8469lm (3000 °K ) / 8905lm (4000°K) 114W 14360lm (3000 °K ) / 13656lm (4000°K)
44W 6266lm (3000 °K ) / 6557lm (4000°K) 68W 9018lm (3000 °K ) / 9435lm (4000°K) 127W 14798lm (3000 °K ) / 15507lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | External LED driver |
| Voeding – Alimentation: | 230V / 50Hz |
| Bescherming – Protection: | IP40 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / Push / DSI / DIM 1-10V / Phase-cut
Turnable White / RGB / RGBW
Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700ºK / 5000ºK / 6500ºK |
Tupoli 70 Suspended
Technische Fiche

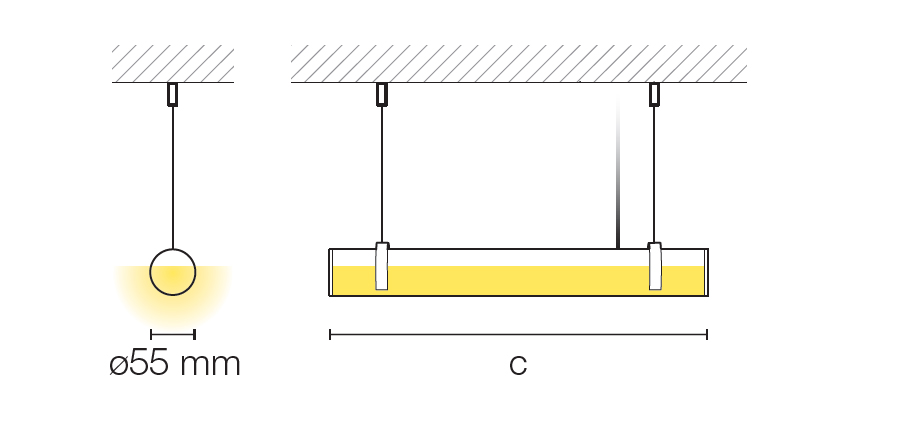

Technische tekening
