| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Extruded Aluminium |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: | 33x79xCmm
C = 595x595x33mm (Corner)
C = 850mm / C = 1130mm C = 1410mm / C = 1690mm C = 1970mm / C = 2250mm C = 2530mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur | Opal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | Corner: 23W
C = 850mm – 17W C = 1130mm – 23W C = 1410mm – 29W C = 1690mm – 36W C = 1970mm – 42W C = 2250mm – 46W C = 2530mm – 52W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Corner – 2124 lm (3000°K) / 2222 lm (4000°K)
C = 850mm – 1338 lm (3000°K) / 1400 lm (4000°K) C = 1130mm – 1784 lm (3000°K) / 1866 lm (4000°K) C = 1410mm – 2230 lm (3000°K) / 2333 lm (4000°K) C = 1690mm – 2676 lm (3000°K) / 2799 lm (4000°K) C = 1970mm – 3123 lm (3000°K) / 3266 lm (4000°K) C = 2250mm – 3569 lm (3000°K) / 3733 lm (4000°K) C = 2530mm – 4015 lm (3000°K) / 4199 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 / IK04 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off / DSI / DIM 1-10V / Phase-cut
Turnable White / RGB / RGBW
Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700K / 5000ºK / 6500ºK |
Snap Suspended
Technische Fiche

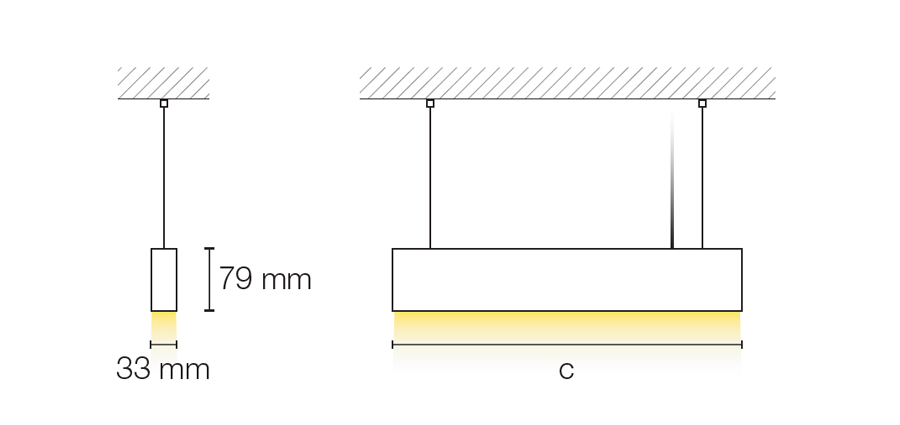

Technische tekening
