| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Extruded Aluminium |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: | 33x79xCmm
C = 1410mm C = 2250mm C= 2530mm
595x595x33mm (Corner) |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur | Opal |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | Corner – 23W
C = 1410mm – 40W C = 2250mm – 69W C= 2530mm – 80W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Direct & Indirect Light
70% Direct and 30% Indirect Light Distribution
Corner – 1784 lm (3000°K) / 1866 lm (4000°K) C = 1410mm – 3123 lm (3000°K) / 3266 lm (4000°K) C = 2250mm – 5353 lm (3000°K) / 5599 lm (4000°K) C= 2530mm – 6245 lm (3000°K) / 6532 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 / IK04 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off / DSI / DIM 1-10V / Phase-cut
Turnable White / RGB / RGBW
Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700K / 5000ºK / 6500ºK |
Snap Suspended – Direct & Indirect Light
Technische Fiche

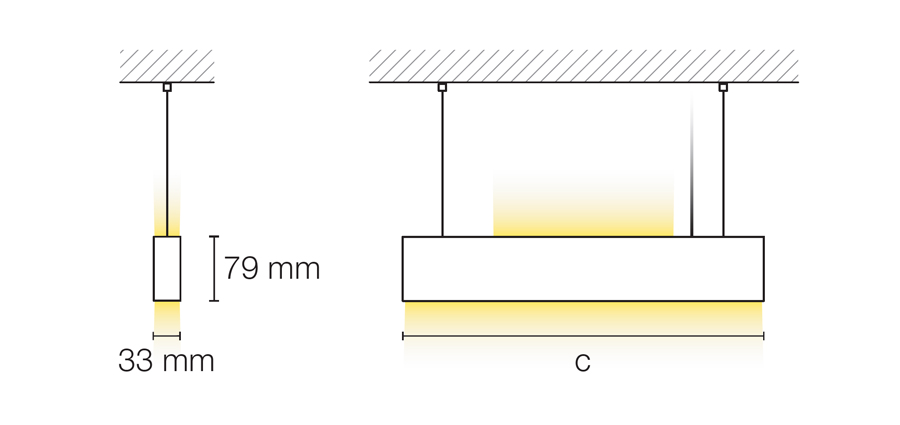

Technische tekening
