| Merk – Marque: | Petridis |
| Materiaal – Materiaux: | Aluminium body
High efficient polycarbonate satin cover |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: | IN
ØA 2010-1960 mm / B = 1740 mm / C = 120º / D = 25 mm ØA 3030-2980 mm / B = 1780 mm / C = 72º / D = 25 mm ØA 4020-3970 mm / B = 1745 mm / C = 51,43º / D = 25 mm ØA 5100-5050 mm / B = 1950 mm / C = 45º / D = 25 mm
OUT ØA 2010-1960 mm / B = 1775 mm / C = 120º / D = 25 mm ØA 3020-2970 mm / B = 1800 mm / C = 72º / D = 25 mm ØA 4010-3960 mm / B = 1760 mm / C = 51,43º / D = 25 mm ØA 5100-5050 mm / B = 1970 mm / C = 45º / D = 25 mm |
| Kleur – Couleur: | White / Black / Titan |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 32W / 29W / 27W / 30W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| RA-CRI: | >80 |
| Lumen: | In & Out Version
140 lm/W at 4000ºK 133 lm/W at 3000ºK |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (included)
230/50Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Connection for operation on 230V-50/60Hz with dimmer dali or 1-10VDC ballast
Rosette and fixed suspension NOT included.
Driver out of the body |
MORFI SMALL PART
Technische Fiche

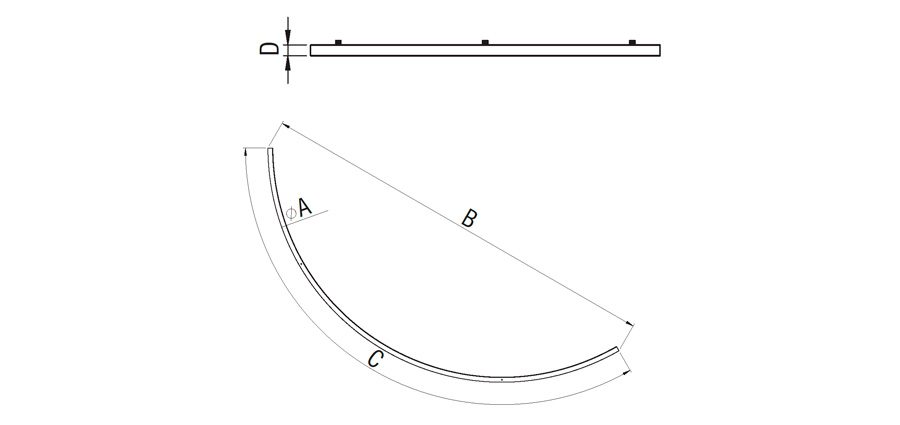

Technische tekening
