| Merk – Marque: º | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: |
Pendel / Suspension (1500mm max) |
|
Afmetingen armatuur – Dimensions armature: |
Linear: 25x1200x300mm / 25x1500x300mm L Angle: 600x600x200mm |
| xKleur – Couleur: | +Zxwart-Noir / Wit-Blanc / Aluminium Anodized |
| Diffuser – Diffuseur: | PMMA Opal (Op) / Microprismatisch-Microprismatique (Mp) |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: |
-Linear: Direct Beam: 26W / 32W Direct & Indirect Beam: 43W / 53W
-L Angle: Direct Beam: 22W Direct & Indirect Beam: 35W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: |
-Linear: Direct Beam: 26W Pm: 2609 lm (3000°K) / 2790 lm (4000°K) Mp: 2768 lm (3000°K) / 2960 lm (4000°K) 32W Pm: 3132 lm (3000°K) / 3350 lm (4000°K) Mp: 3403 lm (3000°K) / 3640 lm (4000°K)
Direct & Indirect Beam: 43W Pm: 4675 lm (3000°K) / 5000 lm (4000°K) Mp: 4834 lm (3000°K) / 5170 lm (4000°K)
53W Pm: 5713 lm (3000°K) / 6110 lm (4000°K) Mp: 5984 lm (3000°K) / 6400 lm (4000°K)
-L Angle: Direct Beam: 22W Pm: 2207 lm (3000°K) / 2360 lm (4000°K) Mp: 2253 lm (3000°K) / 2410 lm (4000°K)
Direct & Indirect Beam: 35W Pm: 3749 lm (3000°K) / 4010 lm (4000°K) Mp: 3805 lm (3000°K) / 4070 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
DALI / Push RA-CRI: >90 |
Cadan Nova System PD/PDI
Technische Fiche

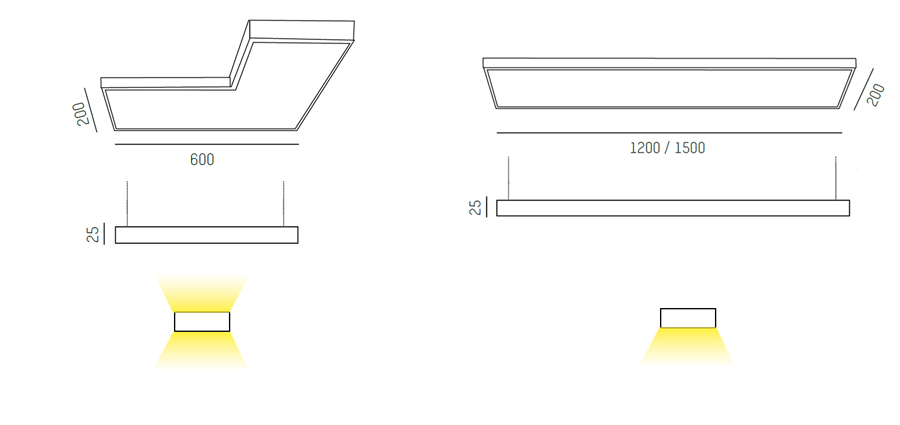

Technische tekening
