| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Pendel – Suspension |
| Afmetingen armatuur – Dimensions armature: | Ø600x90mm / Ø800x90mm
Ø1000x90mm / Ø1200x90mm Ø1400x90mm / Ø1600x90mm Ø1800x90mm |
| Kleur – Couleur: | Matt Black / Matt White |
| Diffuser – Diffuseur | Opal PMMA |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 49W / 67W / 89W / 107W / 129W / 147W / 168W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen | 49W
4056 lm (3000°K) / 4242 lm (4000°K) 67W 5530 lm (3000°K) / 5785 lm (4000°K) 89W 7374 lm (3000°K) / 7714 lm (4000°K) 107W 8849 lm (3000°K) / 9256 lm (4000°K) 129W 10692 lm (3000°K) / 11185 lm (4000°K) 147W 12167 lm (3000°K) / 12727 lm (4000°K) 168W 14010 lm (3000°K) / 14656 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 / IK05 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off
Turnable White / RGB / RGBW
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700ºK / 5000ºK / 6500ºK |
BOYA 90 DOWN
Technische Fiche

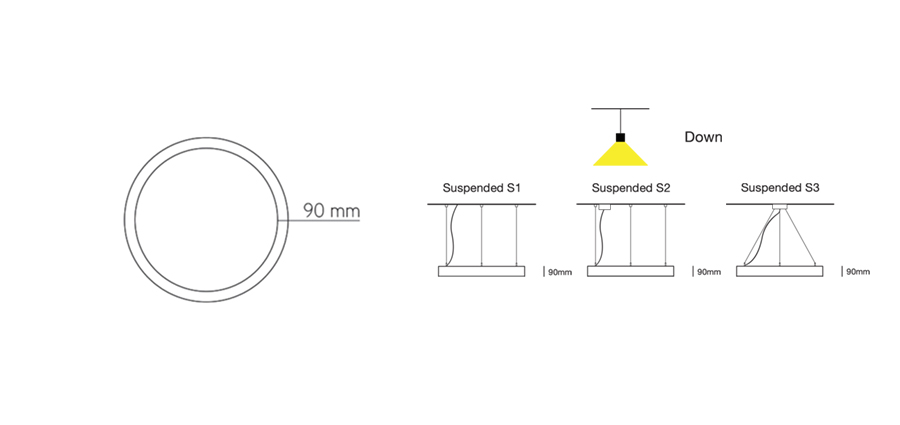

Technische tekening
