| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: | Ø400mm / Ø600mm /Ø800mm /Ø1000mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Silver Matt |
| Diffuser – Diffuseur | Opaal-Opal / Microprismatisch-Microprismatique |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: |
Ø400mm: 30W Ø600mm: 39W (PMMA) / 27W (Microprismatisch-Microprismatique) Ø800mm: 60W (PMMA) / 52W (Microprismatisch-Microprismatique) Ø1000mm: 78W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: |
Direct Beam
-Ø400mm: Opaal-Opal: 2780 lm (2700°K) / 2880 lm (3000°K) / 2880 lm (4000°K) Microprismatisch-Microprismatique: 2760 lm (2700°K) / 2860 lm (3000°K) / 2860 lm (4000°K)
-Ø600mm: Opaal-Opal: 4330 lm (2700°K) / 4480 lm (3000°K) / 4480 lm (4000°K) Microprismatisch-Microprismatique: 3060 lm (2700°K) / 3170 lm (3000°K) / 3170 lm (4000°K)
-Ø800mm: Opaal-Opal: 6340 lm (2700°K) / 6560 lm (3000°K) / 6560 lm (4000°K) Microprismatisch-Microprismatique: 5660 lm (2700°K) / 5860 lm (3000°K) / 5860 lm (4000°K)
-Ø1000mm: Opaal-Opal: 8840 lm (2700°K) / 9150 lm (3000°K) / 9150 lm (4000°K) Microprismatisch-Microprismatique: 8950 lm (2700°K) / 9270 lm (3000°K) / 9270 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V / 50-60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
Push / DALI / Emergency 3h / Emergency 3h DALI UGR<19 (Not for Ø400mm) |
Bina Round PD
Technische Fiche

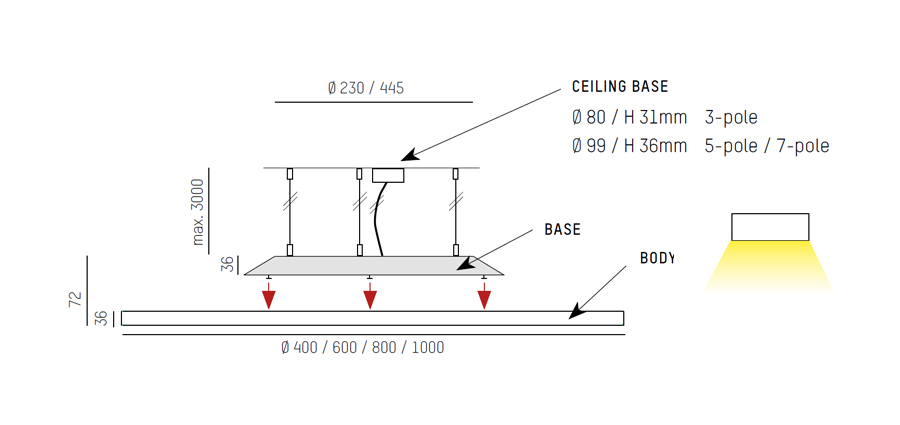

Technische tekening
