| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Pendel / Suspension |
| Afmetingen armatuur – Dimensions armature: | 415x415mm / 576x576mm / 897x89mm |
| Core colours: | Wit-Blanc / Zwart-Noir / Grey |
| Creative Colours: | Copper / Berlin blue / Gold
Berry blue / Merlot / Terra Highland green / Creme / Sepia Anthrazit / Forest / Bronce |
| Diffuser – Diffuseur | Opal cover flat / Microprismatic cover |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | Without indirect beam:
13W / 25W / 65W
With indirect beam: 16W / 31W / 80W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: | Without indirect beam:
13W 1870 lm (2700°K) / 1920 lm (3000°K) / 2010 lm (4000°K) 25W 3750 lm (2700°K) / 3850 lm (3000°K) / 4020 lm (4000°K) 65W 9370 lm (2700°K) / 9630 lm (3000°K) / 10060 lm (4000°K)
With indirect beam: 16W 2370 lm (2700°K) / 2430 lm (3000°K) / 2540 lm (4000°K) 31W 4730 lm (2700°K) / 4860 lm (3000°K) / 5080 lm (4000°K) 80W 11340 lm (2700°K) / 11650 lm (3000°K) / 12160 lm (4000°K) |
| RA – CRI: | >80 |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC / 50-60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off / Dim2 Warm / DALI / Bluetooth / Loxone Air |
BIDO SQUARE PENDANT
Technische Fiche

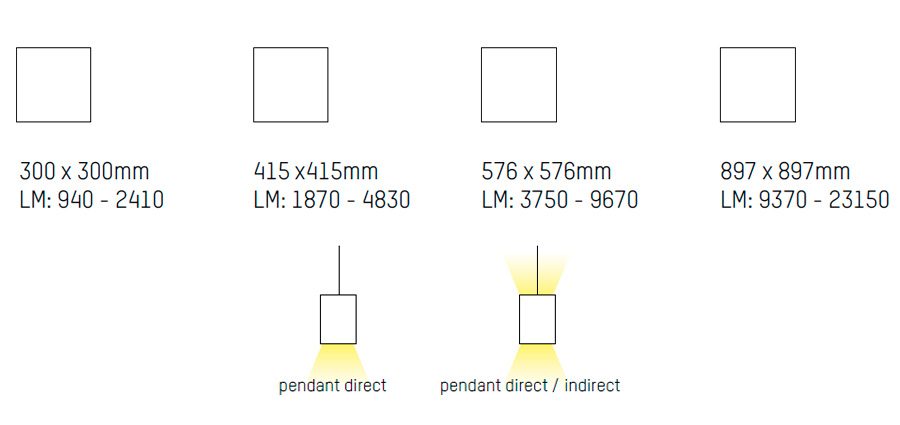

Technische tekening
