| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Extruded Aluminium |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 33x79xCmm
Individual C = 432mm / C = 832mm / C = 1238mm C = 1640mm / C = 2042mm / C = 2444mm
Beginning/End of Line: C = 416mm / C = 816mm / C = 1222mm C = 1624mm / C = 2026mm / C = 2428mm
Middle of Line: C = 403mm / C = 803mm / C = 1209mm C = 1611mm / C = 2013mm / C = 2415mm Corner: 210x210mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur | Opal PMMA |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | Individual
C = 432mm – 5,5W C = 832mm – 11W C = 1238mm – 16,5W C = 1640mm – 22W C = 2042mm – 27,5W C = 2444mm- 33W
Beginning/End of Line: C = 416mm – 5,5W C = 816mm – 11W C = 1222mm – 16,5W C = 1624mm – 22W C = 2026mm – 27,5W C = 2428mm – 33W
Middle of Line: C = 403mm – 5,5W C = 803mm – 11W C = 1209mm – 16,5W C = 1611mm – 22W C = 2013mm – 27,5W C = 2415mm – 33W
Corner: 210x210mm – 5,5W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 5,5W: 282 lm
11W: 565 lm 16,5W: 847 lm 22W: 1130 lm 27,5W: 1412 lm 33W: 1695 lm Corner: 282 lm |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP40 / IK04 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / On-Off / DSI / DIM 1-10V / Phase-cut
Turnable White / RGB / RGBW
Emergency: 1 Hour / 3 Hours / DALI 1 Hour / 3 Hours
Sensor: Motion sensor / Ambient Light / Motion & Ambient Light
CRI>90
Bluetooth Control System
2700K / 5000ºK / 6500ºK |
Snap Mini Surface
Technische Fiche

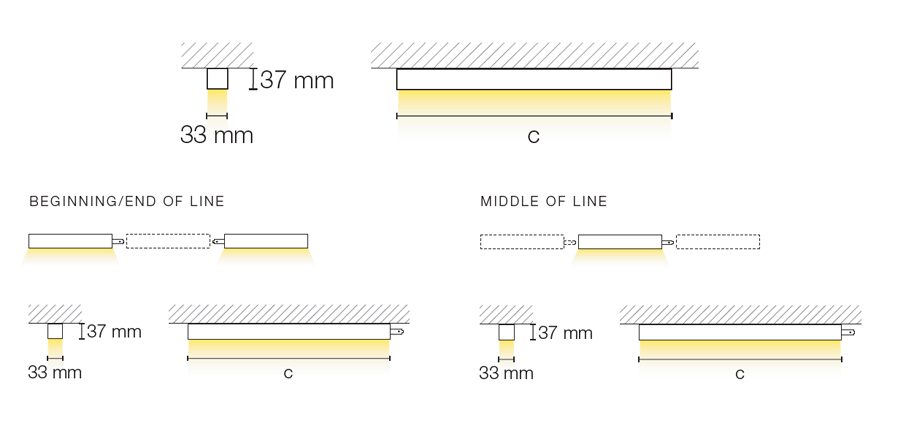

Technische tekening
