| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Die-cast aluminium and sheet metal base |
| Type: | Projector
355º Horizontal and +/- 100º Vertical |
| Kleur – Couleur: | Body finish:
Matt white / Matt Black / Concrete Grey
Ring finish: Lacquered red / Matt orange / Spring green Corn yellow / Matt white / Matt black Concrete grey |
| Bundel – Faisceau: | 21° / 28° / 38° |
| Uitrusting – Equipement: | COB LED |
| Systeemvermogen – Puissance de système: | 2 x 13W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: | RA-CRI >95
Nominal Output: 2 x 1295 lm (2700ºK) / 2 x 1361 lm (3000ºK ) / 2 x 1638 lm (4000ºK) Delivered Output: Medium 21º 2 x 1144 lm (2700ºK) / 2 x 1202 lm (3000ºK ) / 2 x 1447 lm (4000ºK) Large 28º 2 x 1146 lm (2700ºK) / 2 x 1205 lm (3000ºK ) / 2 x 1450 lm (4000ºK) Wide 38º 2 x 1149 lm (2700ºK) / 2 x 1208 lm (3000ºK ) / 2 x 1454 lm (4000ºK)
RA-CRI >85 Nominal Output: 2 x 1680 lm Delivered Output: Medium 21º 2 x 1484 lm Large 28º 1 x 1487 lm Wide 38º 2 x 1491 lm |
| RA – CRI: | >85
(>95 – Only with 3000ºK option) |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Voeding: | 220-240V / 50-60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| Optie ring anti verblinding – Option anneau Anti-éblouissement | Beschikbaar – Disponible |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Narrow Optic / Cut-Off / Visor / Honeycomb Louvre |
MUSEO SMALL 2x
Technische Fiche

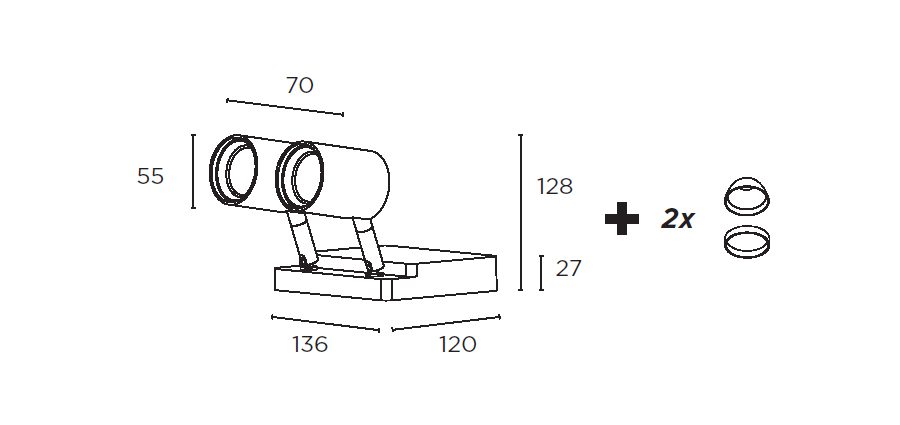

Technische tekening
