| Merk – Marque: | Climar Essence |
| Materiaal – Materiaux: | Polycarbonate with stainless steel suspension |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 90×664 mm / 90×1274 mm / 90×1574 mm
140×664 mm / 140×1274 mm / 140×1574 mm |
| Kleur – Couleur: | – |
| Bundel – Faisceau: | Clear diffuser |
| Uitrusting – Equipement: | LED Modules |
| Systeemvermogen – Puissance de système: | 1×10 MAX / 1×22 MAX / 1×24 MAX
2×10 MAX / 2×22 MAX / 2×24 MAX |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 858 lm / 2042 lm / 3023 lm
1568 lm / 3733 lm / 5525 lm |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP65 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off
Waterproof |
Ate Basic IP65 Clear Diffuser
Technische Fiche

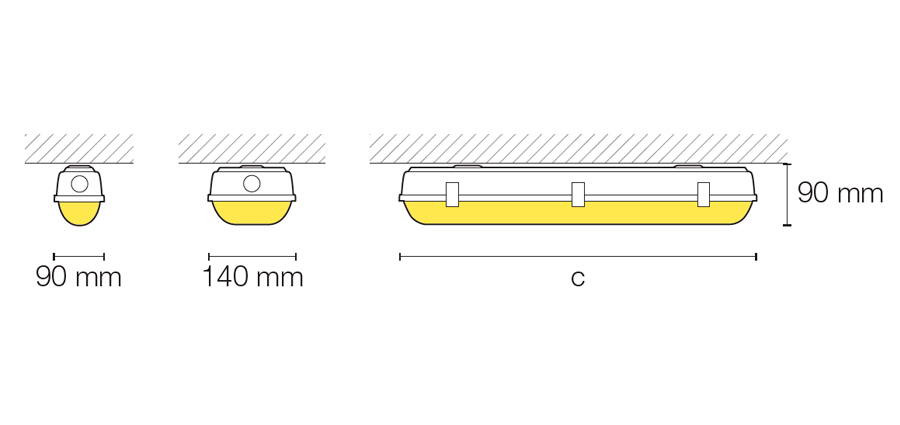

Technische tekening
