| Merk – Marque: | Climar Essence |
| Materiaal – Matxeriaux: | Steel body |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | axbxc mm
70x192x654mm / 70x192x1260mm / 83x675x675mm |
| Kleur – Couleur: | White |
| Bundel – Faisceau: | Opal PMMA – LED Modules Clear Prismatic PMMA – LED Tubes |
| Uitrusting – Equipement: | T8 LED Modules
LED Tubes |
| Systeemvermogen – Puissance de système: | LED Modules – 25W / 51W / 51W (a=83mm)
LED Lamp E27 – 2×10 MAX / 2×22 MAX / 4x10MAX |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | LED Modules
3000°K: 3273 lm – 6546 lm – 5789 lm 4000°K: 3445 lm – 6890 lm – 5789 lm
LED Tubes 1725 lm – 4108 lm – 3864 lm |
| RA-CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220/240V – 50/60Hz |
| Bescherming – Protection: | IP40 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option: | On-Off |
Ata Surface
Technische Fiche

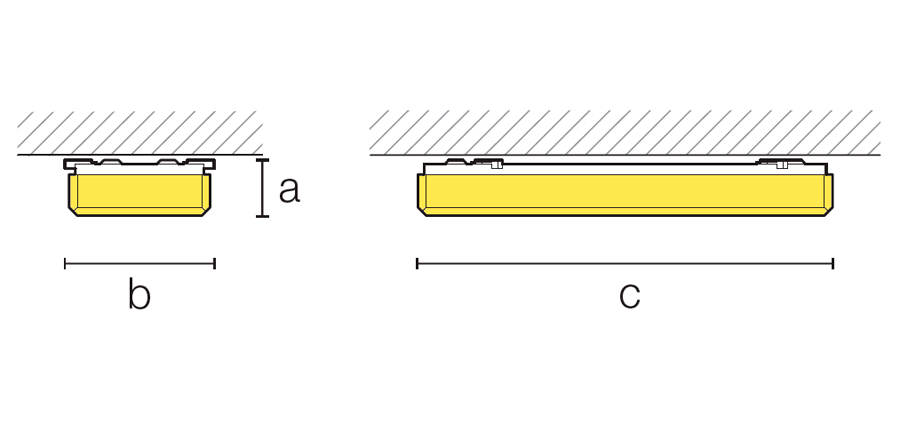

Technische tekening
