| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw vast / Encastré fixe |
| Afmetingen armatuur – Dimensions armature: | 595×595 mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur: | Opal / Microprismatic |
| Uitrusting – Equipement: | LED |
| RA – CRI: | >80 / >90 |
| Systeemvermogen – Puissance de système: | >80
32W / 47W >90 27W / 40W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Opal:
32W 3266 lm (3000°K) / 3522 lm (4000°K) / 3522 lm (5000°K) 47W 4471 lm (3000°K) / 4818 lm (4000°K) / 4818 lm (5000°K) 27W 2638 lm (3000°K) / 2816 lm (4000°K) 40W 3814 lm (3000°K) / 4073 lm (4000°K)
Microprismatic: 32W 3563 lm (3000°K) / 3841 lm (4000°K) / 3841 lm (5000°K) 47W 4877 lm (3000°K) / 5256 lm (4000°K) / 5256 lm (5000°K) 27W 2877 lm (3000°K) / 3072 lm (4000°K) 40W 4161 lm (3000°K) / 4443 lm (4000°K) |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP40 / IK07 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Sensor: | Motion
Ambient Light |
| Optie – Option | On-Off / DALI / Phase cut / DSI
DIM 1-10V, Phase-cut Bluetooth 2700°K / 5000°K / 6500°K Tunable White, RGB, RGBW CRI > 90
Emergency. 1 Hour, 3 Hours DALI 1 Hour, 2 Hour |
Aseptic Regular Square
Technische Fiche

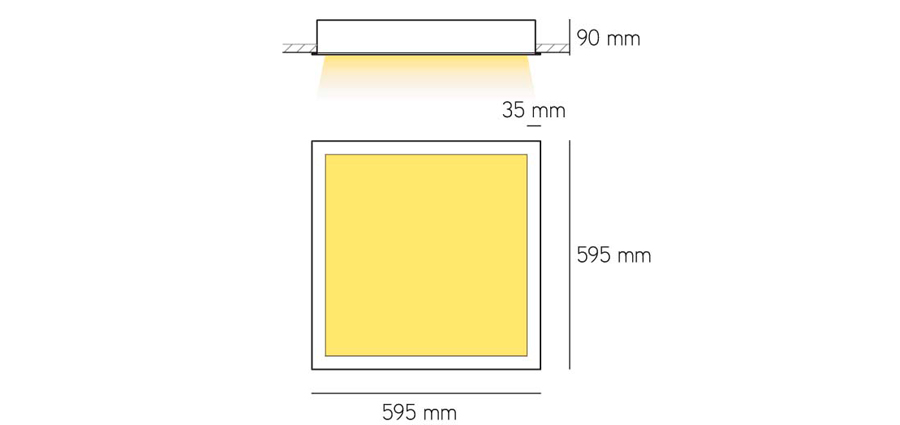

Technische tekening
