| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 295×1195 mm
295×1495 mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur: | Opal / Microprismatic |
| Uitrusting – Equipement: | LED |
| RA – CRI: | >80 / >90 |
| Systeemvermogen – Puissance de système: | >80
57W / 80W 72W / 100W >90 58W / 80W 72W / 100W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Opal:
>80 57W 5875 lm (3000°K) / 6148 lm (4000°K) / 6148 lm (5000°K) 80W 7808 lm (3000°K) / 8170 lm (4000°K) / 8170 lm (5000°K) 72W 7343 lm (3000°K) / 7685 lm (4000°K) / 7685 lm (5000°K) 100W 9761 lm (3000°K) / 10213 lm (4000°K) / 10312 lm (5000°K)
>90 58W 5067 lm (3000°K) / 5288 lm (4000°K) 80W 6731 lm (3000°K) / 7026 lm (4000°K) 72W 6332 lm (3000°K) / 6609 lm (4000°K) 100W 8414 lm (3000°K) / 8783 lm (4000°K)
Microprismatic: >80 57W 7090 lm (3000°K) / 7420 lm (4000°K) / 7420 lm (5000°K) 80W 9424 lm (3000°K) / 9861 lm (4000°K) / 9861 lm (5000°K) 72W 8863 lm (3000°K) / 9275 lm (4000°K) / 9275 lm (5000°K) 100W 11780 lm (3000°K) / 12326 lm (4000°K) / 12326 lm (5000°K))
>90 58W 6115 lm (3000°K) / 6382 lm (4000°K) 80W 8124 lm (3000°K) / 8480 lm (4000°K) 72W 7643 lm (3000°K) / 7977 lm (4000°K) 100W 10155 lm (3000°K) / 10600 lm (4000°K) |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP40 / IK07 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Sensor: | Motion
Ambient Light |
| Optie – Option | On-Off / DALI / DSI / DIM 1-10V
Emergency. 1 Hour, 3 Hours DALI 1 Hour, 2 Hour
Antibacterial coating
Suction Cup |
Aseptic Extreme Surface Rectangular
Technische Fiche

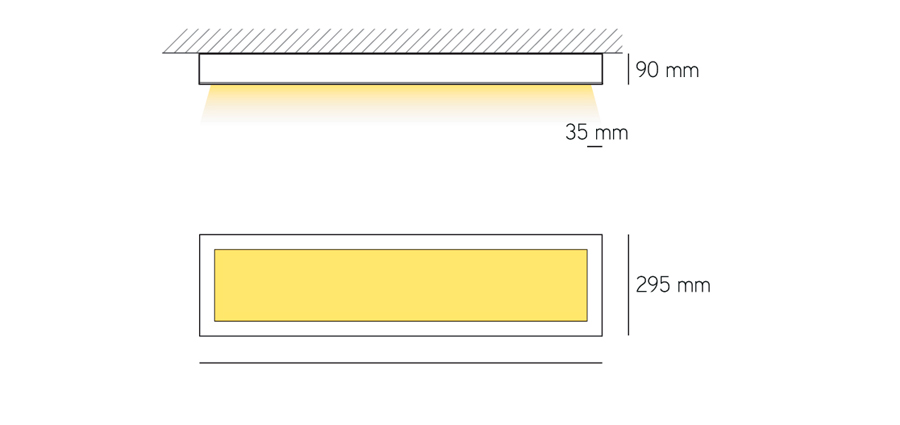

Technische tekening
