| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Opbouw / Apparent |
| Afmetingen armatuur – Dimensions armature: | 50x300x300mm / 50x400x400mm
50x500x500mm / 50x600x600mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Aluminium Anodized |
| Diffuser – Diffuseur | PMMA Opal (Op) / Microprismatisch-Microprismatique (Mp) |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 13W / 19W / 33W / 46W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Direct & Indirect Beam
13W: Pm: 1459 lm (3000°K) / 1560 lm (4000°K) Mp: 1496 lm (3000°K) / 1600 lm (4000°K)
19W: Pm: 2394 lm (3000°K) / 2560 lm (4000°K) Mp: 2422 lm (3000°K) / 2590 lm (4000°K)
33W: Pm: 4161 lm (3000°K) / 4450 lm (4000°K) Mp: 4198 lm (3000°K) / 4490 lm (4000°K)
46W: Pm: 6180 lm (3000°K) / 6610 lm (4000°K) Mp: 6236 lm (3000°K) / 6670 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI / Push
RA-CRI: >90 |
Cadan Nova S SDI
Technische Fiche

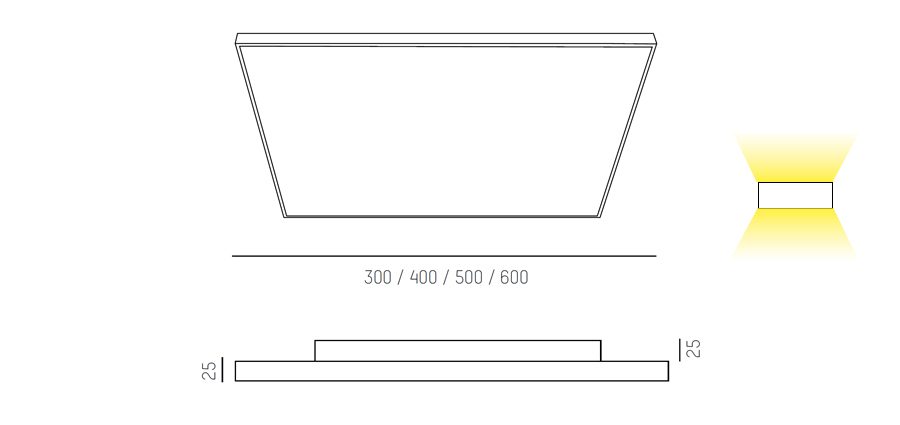

Technische tekening
