| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable |
| Afmetingen armatuur – Dimensions armature: | Ø61x104mm |
| Kleur – Couleur: | Matt White txt / Matt Black txt / Concrete Grey
Copper gray / Mud brown / Gold txt |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 8,2W & 18,2W & 17,3W & 17W & 11,8W & 17,9W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 3500°K / 4000°K |
| Bundel – Faisceau: | Very Narrow Spot: 6,4° (8,2W)
Narrow Spot: 9,3° (18,2W) Spot: 14,4° (25,1W) Flood: 34,8° (25,1W) Wide Flood: 50,6° (24,4W) Elliptical Narrow Spot: 10,3° / 34,4° (18,2W) Elliptical Wide Flood: 40,3° / 70,5° (24,4W) Deep Washer: (17W) Grazing Washer: (17W) Area Washer: (17W) |
| Lumen: | Very Narrow Spot:
539 lm Narrow Spot: 1238 lm Spot: 2146 lm Flood: 2349 lm Wide Flood: 2249 lm Elliptical Narrow Spot: 764 lm Elliptical Wide Flood: 1619 lm Deep Washer: 1470 lm Grazing Washer: 1101 lm Area Washer: 904 lm |
| RA-CRI: | >92 / >98 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| UGR: | <10 |
| Optie – Option | On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency
Visor / Snoot / Honeycomb / Elliptical Lens / Protective Glass / Diffusing Lens / Primary Ring |
SPOT REVO COMPACT
Technische Fiche

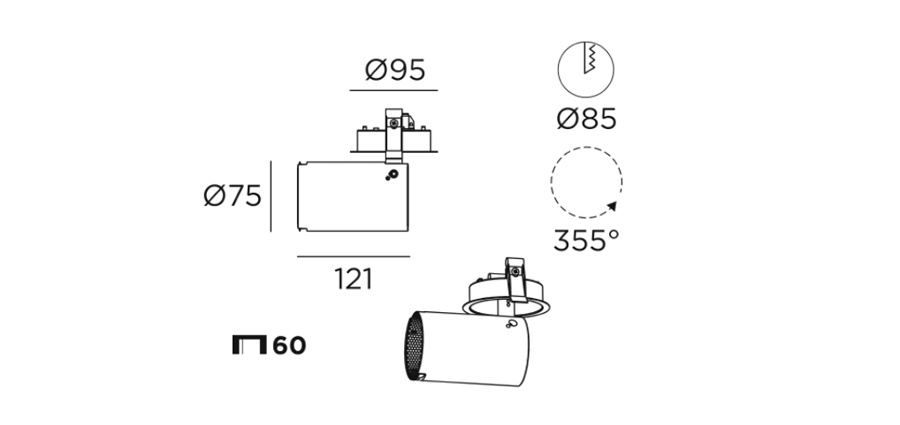

Technische tekening
