DARK TILT SMALL TRIMLESS 2x

DARK TILT SMALL TRIMLESS 2x
DARK TILT SMALL TRIMLESS 2x

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Aluminium
Type: Inbouw Richtbaar / Encastré Orientable
Afmetingen armatuur – Dimensions armature: 99x209x74mm
Kleur – Couleur: Matt White txt / Matt Black txt / Concrete Grey

Copper txt / Gold txt

Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 02 x 8,2W & 02 x 9,2W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 3500°K / 4000°K
Bundel – Faisceau: Narrow Spot: 11° (8,2W)

Spot: 17° (9,2W)

Narrow Flood: 24° (9,2W)

Flood: 36° (9,2W)

Wide Flood: 47° (9,2W)

Elliptical Narrow Spot: 53,9° / 12°  (8,2W)

Elliptical Wide Flood: 42,3° / 72°  (9,2W)

Lumen: Narrow Spot:

1584 lm

Spot:

1419 lm

Narrow Flood:

1575 lm

Flood:

1594 lm

Wide Flood:

1459 lm

Elliptical Narrow Spot:

826 lm

Elliptical Wide Flood:

1229 lm

 RA-CRI: >92 / >98
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
UGR: <13 / High confort <10
Optie – Option On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency

Honeycomb / Elliptical Lens

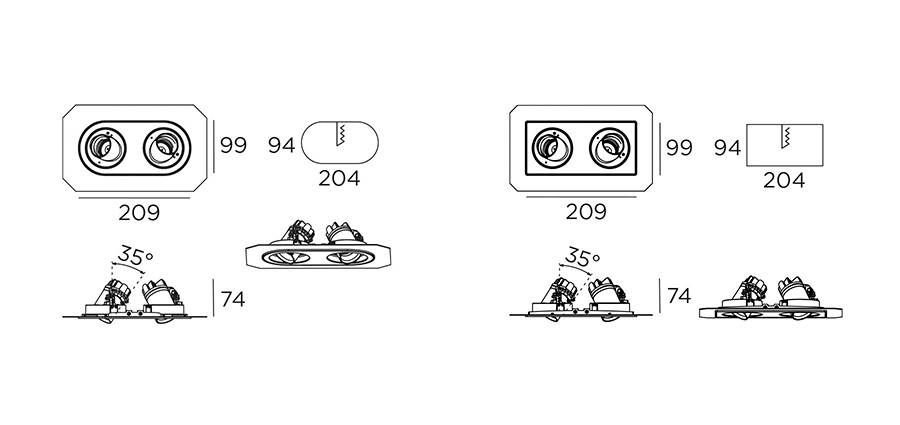

Technische tekening

DARK TILT SMALL TRIMLESS 2x

DARK TILT SMALL TRIMLESS 2x DARK TILT SMALL TRIMLESS 2x

Technische Fiche

Merk – Marque: Exenia
Materiaal – Materiaux: Aluminium
Type: Inbouw Richtbaar / Encastré Orientable
Afmetingen armatuur – Dimensions armature: 99x209x74mm
Kleur – Couleur: Matt White txt / Matt Black txt / Concrete Grey

Copper txt / Gold txt

Uitrusting – Equipement: LED
Systeemvermogen – Puissance de système: 02 x 8,2W & 02 x 9,2W
Kelvin graden – Degré Kelvin: 2700°K / 3000°K / 3500°K / 4000°K
Bundel – Faisceau: Narrow Spot: 11° (8,2W)

Spot: 17° (9,2W)

Narrow Flood: 24° (9,2W)

Flood: 36° (9,2W)

Wide Flood: 47° (9,2W)

Elliptical Narrow Spot: 53,9° / 12°  (8,2W)

Elliptical Wide Flood: 42,3° / 72°  (9,2W)

Lumen: Narrow Spot:

1584 lm

Spot:

1419 lm

Narrow Flood:

1575 lm

Flood:

1594 lm

Wide Flood:

1459 lm

Elliptical Narrow Spot:

826 lm

Elliptical Wide Flood:

1229 lm

 RA-CRI: >92 / >98
Afkoeling – Refroidissement: Passief – Passif
Voorschakelapp – Ballast: LED driver
Bescherming – Protection: IP40
Norm – Norme: CE EN60598-1
CIE fluxcode: Op aanvraag – Sur demande
UGR: <13 / High confort <10
Optie – Option On-Off / DALI / 1-10 V / Push / Casambi / Phase Cut / Emergency

Honeycomb / Elliptical Lens

Technische tekening
