| Merk – Marque: | Nobile |
| Materiaal – Materiaux: | Painted Aluminium |
| Type: | Inbouw / Encastré |
| Afmetingen armatuur – Dimensions armature: | Ø218X132mm |
| Kleur – Couleur: | Matt White / Matt Black / Silver Matt |
| Bundel – Faisceau: | 30º / 60º |
| Uitrusting – Equipement: | COB LED |
| Systeemvermogen – Puissance de système: | 25W / 38W /52W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 25W:
30º: 2781 lm (3000°K) / 2950 lm (4000°K) 60º: 2264 lm (3000°K) / 2401 lm (4000°K)
38W: 30º: 3876 lm (3000°K) / 4129 lm (4000°K) 60º: 3156 lm (3000°K) / 3362 lm (4000°K) 52W: 30º: 4896 lm (3000°K) / 5071 lm (4000°K) 60º: 3841 lm (3000°K) / 3979 lm (4000°K) |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (inclu.) |
| Voeding – Alimentation: | 220-240V – 50/60Hz |
| Bescherming – Protection: | IP20 / IP54 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | On-Off / DALI / 1-10V / Triac driver |
COMBO C3R
Technische Fiche

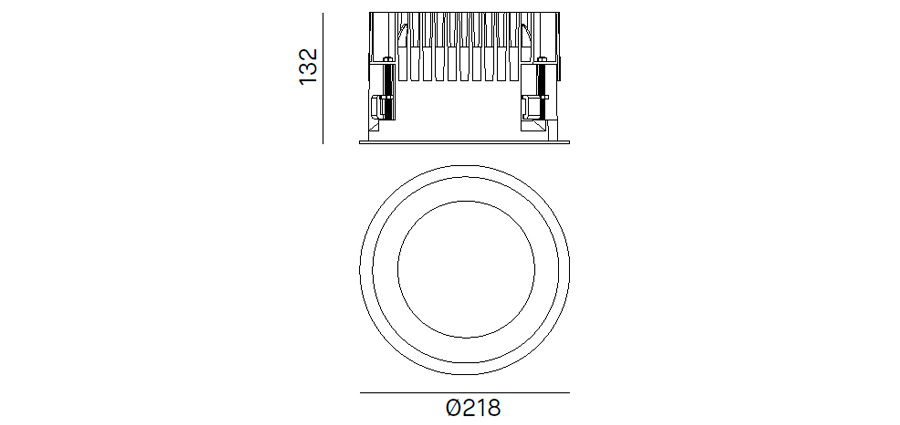

Technische tekening
