| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw vast / Encastré fixe |
| Afmetingen armatuur – Dimensions armature: | 600×600 mm
600×1200 mm |
| Kleur – Couleur: | Matt White / Matt Anodized |
| Diffuser – Diffuseur: | Opal / Microprismatic |
| Uitrusting – Equipement: | LED |
| RA – CRI: | >80 |
| Systeemvermogen – Puissance de système: | 32W / 42W
64W / 84W |
| Kelvin graden – Degré Kelvin: | 4000°K / 6500°K |
| Lumen: | Opal:
32W 3240 lm (4000°K) / 3208 lm (6500°K) 42W 4084 lm (4000°K) / 4046 lm (6500°K) 64W 6340 lm (4000°K) / 6279 lm (6500°K) 84W 7993 lm (4000°K) / 7918 lm (6500°K)
Microprismatic: 32W 3841 lm (4000°K) / 4843 lm (6500°K) 42W 4843 lm (4000°K) / 4797 lm (6500°K) 64W 7040 lm (4000°K) / 6972 lm (6500°K) 84W 8875 lm (4000°K) / 8792 lm (6500°K) |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP40 / IK07 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Sensor: | Motion
Ambient Light |
| Optie – Option | On-Off / DALI / DSI / DIM 1-10V
Emergency. 1 Hour, 3 Hours DALI 1 Hour, 2 Hour
Antibacterial coating
Suction Cup |
Aseptic Walk-ON
Technische Fiche

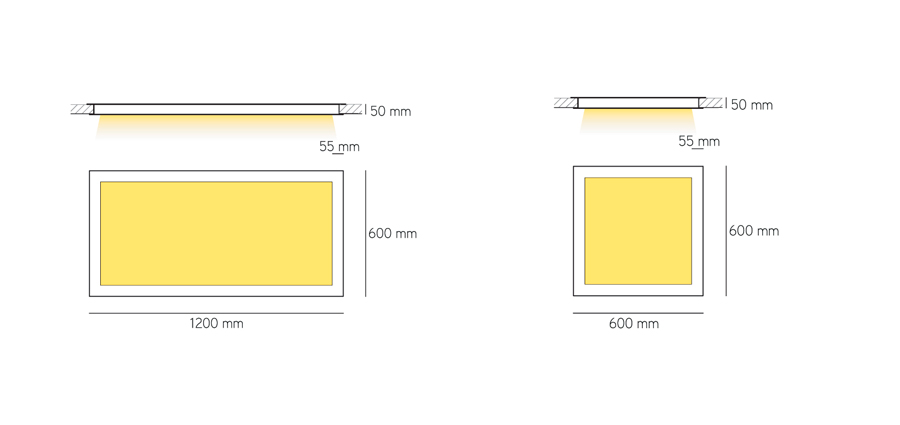

Technische tekening
