| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw / Encastré |
| Afmetingen armatuur – Dimensions armature: | 620×620 mm |
| Kleur – Couleur: | Matt White |
| Diffuser – Diffuseur: | Opal / Microprismatic |
| Uitrusting – Equipement: | LED |
| RA – CRI: | >80 / >90 |
| Systeemvermogen – Puissance de système: | >80
33W / 44W >90 27W / 40W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Opal:
>80 33W 3680 lm (3000°K) / 3891 lm (4000°K) / 3921 lm (5000°K) 44W 4696 lm (3000°K) / 4947 lm (4000°K) / 4901 lm (5000°K) >90 27W 2638 lm (3000°K) / 2816 lm (4000°K) 40W 3814 lm (3000°K) / 4073 lm (4000°K)
Microprismatic: >80 33W 4015 lm (3000°K) / 4245 lm (4000°K) / 4277 lm (5000°K) 44W 5123 lm (3000°K) / 5418 lm (4000°K) / 5347 lm (5000°K) >90 27W 2877 lm (3000°K) / 3072 lm (4000°K) 40W 4161 lm (3000°K) / 4443 lm (4000°K) |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP65 / IK09 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Sensor: | Motion
Ambient Light |
| Optie – Option | On-Off / DALI / DSI / DIM 1-10V
Emergency. 1 Hour, 3 Hours DALI 1 Hour, 2 Hour
Antibacterial coating
Suction Cup |
Aseptic Advanced Square
Technische Fiche

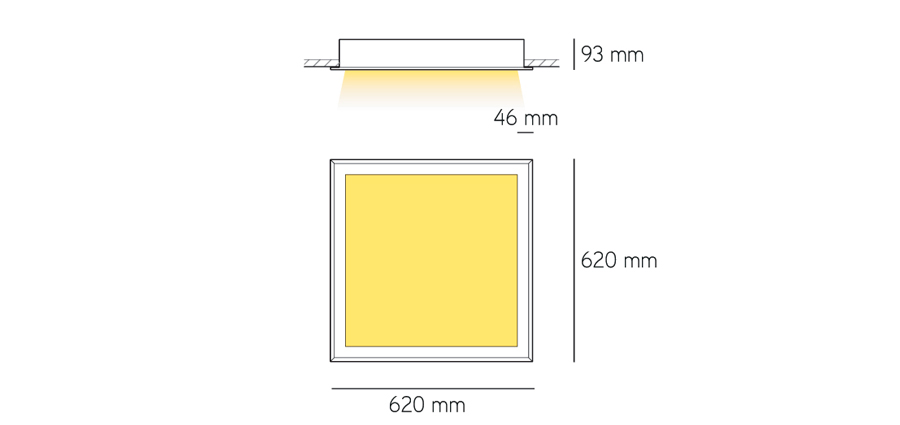

Technische tekening
