| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw / Encastré |
| Afmetingen armatuur – Dimensions armature: | 295×1195 mm
295×1495 mm |
| Kleur – Couleur: | Matt White |
| Diffuser – Diffuseur | Clear PMMA |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 17W / 25W
22W / 32W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 2357 lm (3000°K) / 2478 lm (4000°K)
3284 lm (3000°K) / 3452 lm (4000°K) 2977 lm (3000°K) / 3067 lm (4000°K) 4146 lm (3000°K) / 4273 lm (4000°K) |
| RA – CRI: | >80 |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP20 / IK05 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Sensor: | Motion
Ambient Light |
| Optie – Option | On-Off / DALI / Phase cut / DSI
DIM 1-10V, Phase-cut Bluetooth 2700°K / 5000°K / 6500°K Tunable White, RGB, RGBW CRI > 90
Emergency. 1 Hour, 3 Hours DALI 1 Hour, 2 Hour |
Adaar 1TH
Technische Fiche

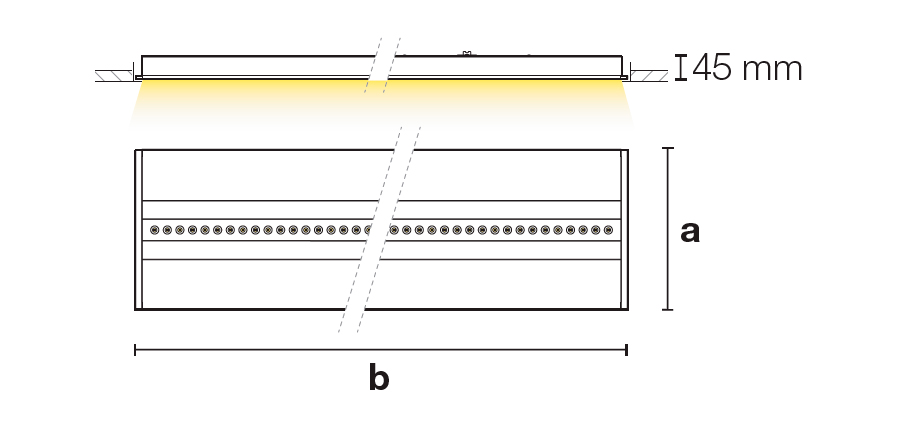

Technische tekening
