| Merk – Marque: | Exenia |
| Materiaal – Materiaux: | Die Cast Aluminium |
| Type: | Inbouw Richtbaar / Encastré Orientable
359° Horizontal-Horizontaal / +/- 80° Vertical-Verticaal |
| Afmetingen armatuur – Dimensions armature: | 48X169 mm |
| Inbouwafmetingen – Dimensions d’encastrement: | 80×155 mm |
| Kleur – Couleur: | Matt white / Matt Black / Concrete Grey
Ring: Brick red / Lacquered red / Matt orange Green spring / Yellow corn / Matt white Matt black / Baby blue / Concrete grey |
| Bundel – Faisceau: | Medium: 21°
Large: 30° Wide: 59° |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 2x6W / 2x9W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: | 2x6W
Medium: 2×604 lm Large: 2×601 lm Wide: 2×521 lm
2x9W Medium: 2×831 lm Large: 2×826 lm Wide: 2×716 lm |
| RA – CRI: | >85 / >95 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Push / On-Off / 1 – 10V / DALI / Phase Cut
Snoot / Visor / Bluetooth accesory for DALI driver |
Pluriel 2x Downlight
Technische Fiche

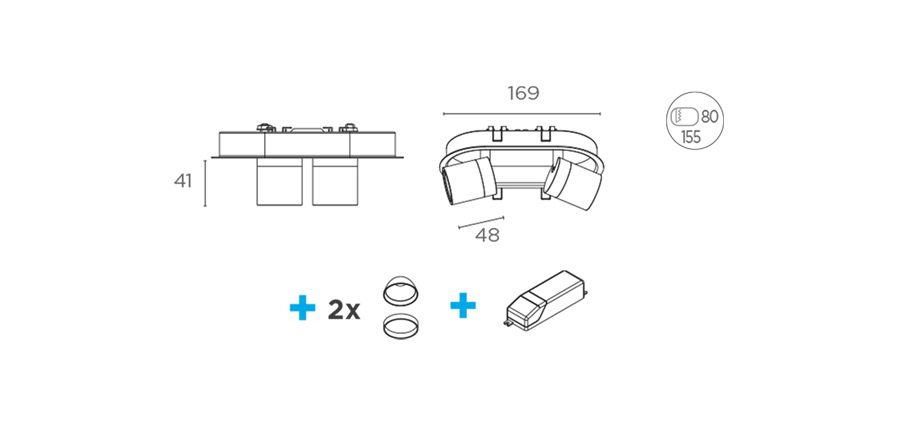

Technische tekening
