| Merk – Marque: | Castaldi Lighting |
| Materiaal – Materiaux: | Housing made of brak-formed electrically welded steel plate. |
| Type: | Inbouw / Encastré |
| Afmetingen armatuur – Dimensions armature: | 200x300x60 mm |
| Kleur – Couleur: | Embossed White / Graphite Satin |
| Diffuser – Diffuseur | Dark / Oval Side 1/3 / Wall Washer / Full Effect |
| Optics: | SYM-ASY / ASY-ASY |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 19W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| RA – CRI: | >80 / >90 |
| Lumen: | Dark:
CRI >80 3000°K: 1883 lm / 4000°K: 2014 lm CRI >90 3000°K: 1090 lm / 4000°K: 1218 lm
Oval Side 1/3 CRI >80 3000°K: 1652 lm / 4000°K: 1767 lm CRI >90 3000°K: 957 lm / 4000°K: 1068 lm
Wall Washer CRI >80 3000°K: 1569 lm / 4000°K: 1678 lm CRI >90 3000°K: 908 lm / 4000°K: 1014 lm
Full Effect CRI >80 3000°K: 937 lm / 4000°K: 1002 lm CRI >90 3000°K: 543 lm / 4000°K: 605 lm |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V 50-60Hz |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Push / DALI |
Usepartout Recessed Sink 2x
Technische Fiche

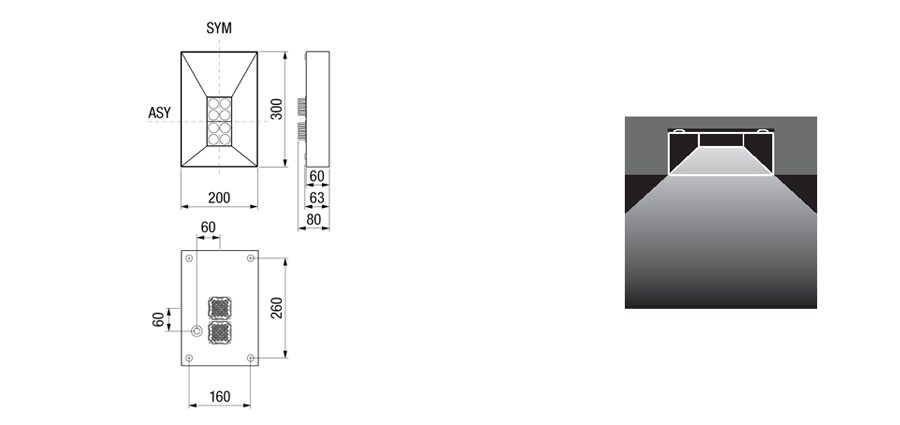

Technische tekening
