| Merk – Marque: | Climar |
| Materiaal – Materiaux: | Epoxy-polyester powder coated aluminium frame |
| Type: | Inbouw vast / Encastré fixe |
| Afmetingen armatuur – Dimensions armature: | 145x145x90mm |
| Kleur – Couleur: | Matt White / Matt Black |
| Diffuser – Diffuseur | Opal Polycarbonate |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 13W / 21W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | 13W:
679 lm (3000°K) / 724 lm (3500°K)
21W: 966 lm (3000°K) / 1030 lm (3500°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED external driver
-ON/OFF Power Supply 7-15W IP20 400mA Power Supply 15-22W IP20 600mA
-DALI Power Supply 7-15W IP20 400mA Power Supply 15-22W IP20 600mA |
| Voeding – Alimentation: | 230V/50Hz |
| Bescherming – Protection: | IP20 / IK06 / IP44 (Optic) |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DSI / 1-10V Dimm / Phase-Cut
CRI>90
2700ºK / 5000ºK / 6500ºK Tunable White / RGB / RGBW
Bluetooth Control System
Emergency: 1 h / 3 h – DALI 1 h / 3 h
Sensors: Motion / Ambient Light / Motion & Ambient Light |
Talles 145 SQ
Technische Fiche

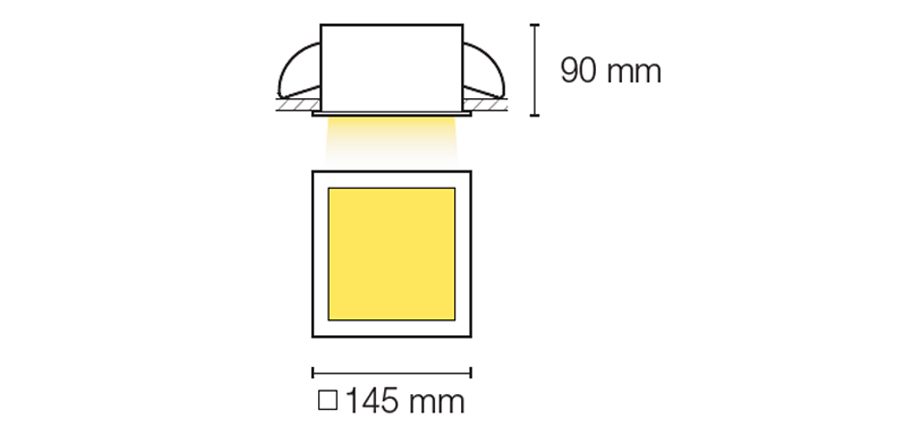

Technische tekening
