| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw vast / Encastré fixe |
| Afmetingen armatuur – Dimensions armature: | 400x400mm / 600x600mm / 800x800mm / 1000x1000mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Silver Matt |
| Diffuser – Diffuseur | Opaal-Opal / Microprismatisch-Microprismatique |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 30W / 39W / 60W / 78W |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: | Direct Beam
-Ø400mm: Opaal-Opal: 2980 lm (2700°K) / 3090 lm (3000°K) / 3090 lm (4000°K) Microprismatisch-Microprismatique: 3080 lm (2700°K) / 3190 lm (3000°K) / 3190 lm (4000°K)
-Ø600mm: Opaal-Opal: 4190 lm (2700°K) / 4340 lm (3000°K) / 4340 lm (4000°K) Microprismatisch-Microprismatique: 4290 lm (2700°K) / 4450 lm (3000°K) / 4450 lm (4000°K)
-Ø800mm: Opaal-Opal: 6390 lm (2700°K) / 6620 lm (3000°K) / 6620 lm (4000°K) Microprismatisch-Microprismatique: 6480 lm (2700°K) / 6710 lm (3000°K) / 6710 lm (4000°K)
-Ø1000mm: Opaal-Opal: 8410 lm (2700°K) / 8710 lm (3000°K) / 8710 lm (4000°K) Microprismatisch-Microprismatique: 8740 lm (2700°K) / 9050 lm (3000°K) / 9050 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC/DC |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Push / DALI / Emergency 3 h / Emergency 3h DALI
UGR<19 (Not for Ø400mm) |
Bina Square Trimless R
Technische Fiche

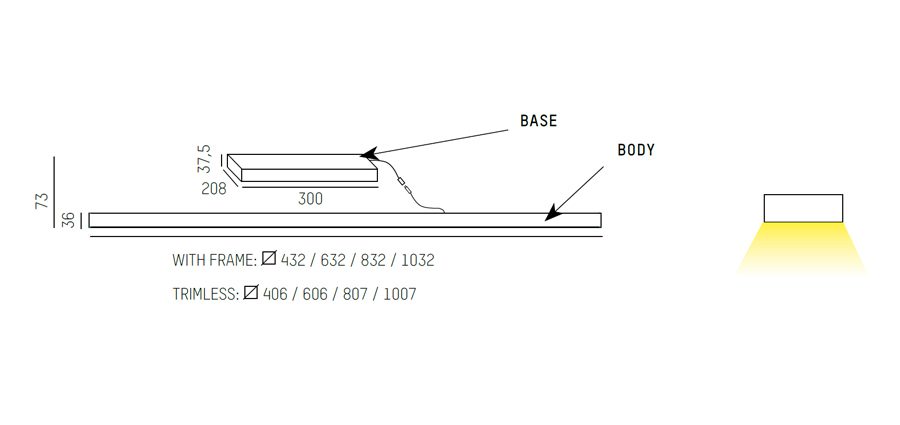

Technische tekening
