| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Inbouw / Encastré
Richtbaar-Orientable: 350° Horizontal-Horizontaal / 30° Vertical-Verticaal |
| Afmetingen armatuur – Dimensions armature: | Ø140x94mm |
| Kleur – Couleur: | Wit-Blanc / Zwart-Noir / Silver Matt |
| Reflector – Reflecteur: | Alu 99,98 |
| Bundel – Faisceau: | 17º / 24º / 40º / 60º / Asymm. |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: | 12W / 17W / 24W / 28W / 29W / 35W
(29W & 35W only in 24º & 40º Version) |
| Kelvin graden – Degré Kelvin: | 2700°K / 3000°K / 4000°K |
| Lumen: | 12W:
1280 lm (2700°K) / 1500 lm (3000°K) / 1580 lm (4000°K) 17W: 1760 lm (2700°K) / 2070 lm (3000°K) / 2170 lm (4000°K) 24W: 2360 lm (2700°K) / 2770 lm (3000°K) / 2900 lm (4000°K) 28W: 2640 lm (2700°K) / 3100 lm (3000°K) / 3250 lm (4000°K) 29W: 3100 lm (2700°K) / 3640 lm (3000°K) / 3820 lm (4000°K) 35W: 3490 lm (2700°K) / 4100 lm (3000°K) / 4300 lm (4000°K)
Lumen values without glass |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver (exclu.) |
| Voeding – Alimentation: | 350mA (12W) / 500mA (17W) / 700mA (24W)
800mA (28W) / 900mA (29W) / 1050mA (35W) |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | Push / DALI / Smart Bluetooth Dimm / Casambi |
Mova M Turn Basic R
Technische Fiche

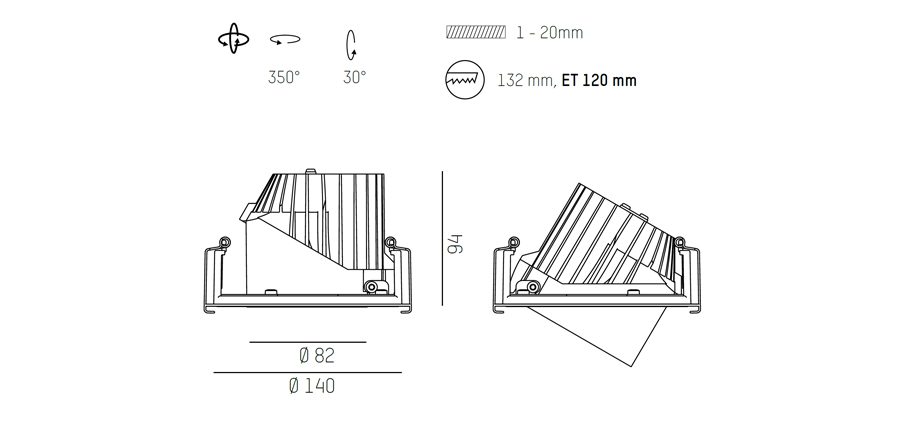

Technische tekening
