| Merk – Marque: | Molto Luce |
| Materiaal – Materiaux: | Aluminium |
| Type: | Pendel / Suspension (1500mm max) |
|
Afmetingen armatuur – Dimensions armature: |
Hx430x430mm / Hx530x530mm / Hx630x630mm Hx900x900mm / Hx1200x1200mm H=75mm |
| Kleur – Couleur: | Zwart-Noir / Wit-Blanc / Aluminium Anodized |
| Diffuser – Diffuseur | PMMA Opal (Op) / Microprismatisch-Microprismatique (Mp) |
| Uitrusting – Equipement: | LED |
| Systeemvermogen – Puissance de système: |
31W / 40W / 68W / 96W / 161W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: |
Direct & Indirect Beam
31W: Pm: 4142 lm (3000°K) / 4430 lm (4000°K) Mp: 4077 lm (3000°K) / 4360 lm (4000°K)
40W: Pm: 5713 lm (3000°K) / 6110 lm (4000°K) Mp: 5610 lm (3000°K) / 6000 lm (4000°K)
68W: Pm: 9135 lm (3000°K) / 9770 lm (4000°K) Mp: 8985 lm (3000°K) / 9610 lm (4000°K)
96W: Pm: 11248 lm (3000°K) / 12030 lm (4000°K) Mp: 11024 lm (3000°K) / 11790 lm (4000°K)
161W: Pm: 18644 lm (3000°K) / 19940 lm (4000°K) Mp: 18251 lm (3000°K) / 19520 lm (4000°K) |
| RA – CRI: | >80 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Voeding – Alimentation: | 220-240V AC |
| Bescherming – Protection: | IP20 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: |
Op aanvraag – Sur demande |
| Optie – Option |
DALI / Push RA-CRI: >90 |
Cadan PDI
Fiche technique

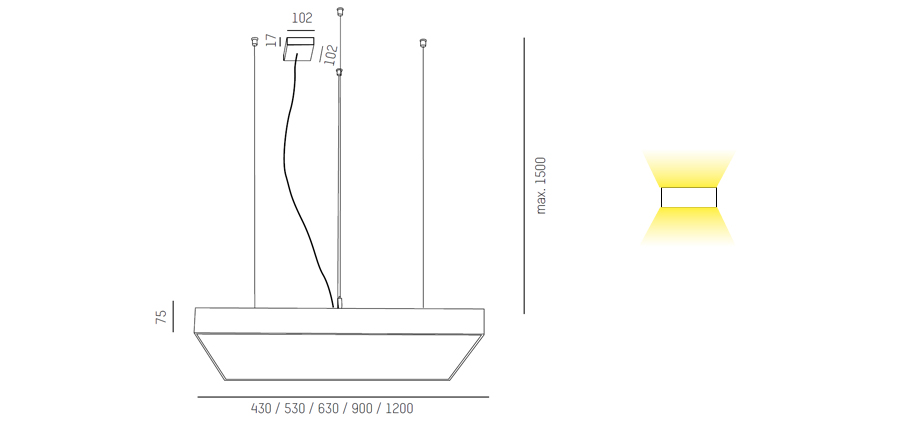

Dessin technique
