| Merk – Marque: | Castaldi-Norlight |
| Materiaal – Materiaux: | Composite structure made of extruded aluminium and laser-shaped matching steel parts. |
| Type: | Inbouw Richtbaar / Encastré Orientable |
| Afmetingen armatuur – Dimensions armature: | 97x115x71 mm |
| Kleur – Couleur: | Embossed White / Embossed Black |
| Diffuser – Diffuseur: | Veiligheidsglas – Verre de sécurité |
| Bundel – Faisceau: | Narrow Beam / Spot Beam |
| Uitrusting – Equipement: | SLED |
| Systeemvermogen – Puissance de système: | 21W |
| Kelvin graden – Degré Kelvin: | 3000°K / 4000°K |
| Lumen: | Narrow Beam:
4000°K: 1251 lm / 3000°K: 1397 lm
Spot Beam: 4000°K: 1210 lm / 3000°K: 1351 lm |
| RA – CRI: | >90 |
| Afkoeling – Refroidissement: | Passief – Passif |
| Voorschakelapp – Ballast: | LED driver |
| Bescherming – Protection: | IP20 / IK08 |
| Norm – Norme: | CE EN60598-1 |
| CIE fluxcode: | Op aanvraag – Sur demande |
| Optie – Option | DALI
Trimless / Frame |
Axel Square 9 1x Adjustable Trimless
Fiche technique

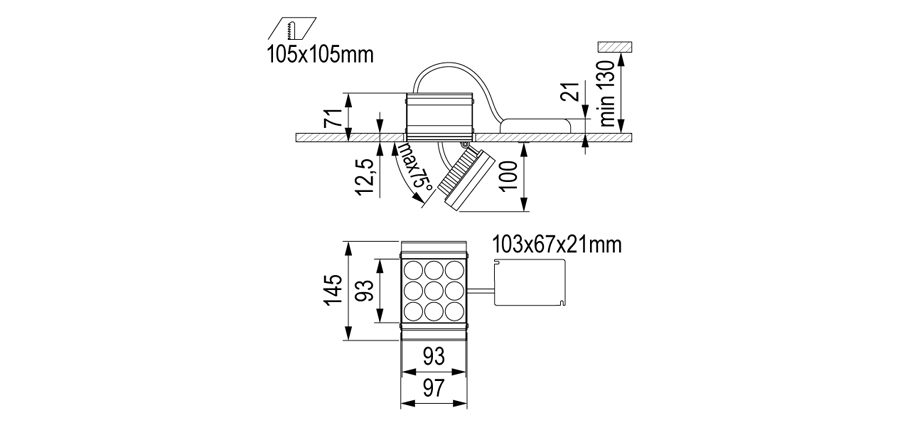

Dessin technique
